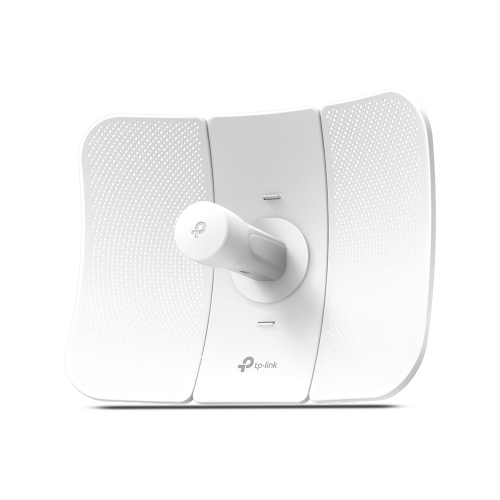

TP-LINK CPE710, 867Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE

TP-LINK CPE710, 867Mbps, 5Ghz WiFi, 23dbi Anten, Noktadan Noktaya, Dış Mekan, Access Point CPE

Tp-Link

Bu ürünü en uygun fiyata satın almak için teklif isteyebilirsiniz !



  • Ürün Açıklaması

DONANIM ÖZELLİKLERİ
İşlemciQualcomm 750MHz CPU, MIPS 74Kc
Bellek128 MB DDR2 RAM, 16 MB Flash
Arabirim1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button
Güç KaynağıPassive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC
Boyutlar ( W X D X H )366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Anten Kazancı23 dBi
Anten Beamwidth9° (Azimuth)/7° (Elevation)
Koruma15 KV ESD Protection
6 KV Lightning Protection
MuhafazaMaterial: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design
KABLOSUZ ÖZELLİKLERİ
Kablosuz StandartlarIEEE 802.11a/n/ac
Kablosuz HızıUp to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)
Frekans5.15~5.85 GHz
İletim GücüMax. 27 dBm (Adjustable power by 1dBm)
YAZILIM ÖZELLİKLERİ
Ağ YapılandırmaWAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Kablosuz KonfigürasyonlarSelectable Channel Width: 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP
YönetimDiscovery and Remote Management via Pharos Control application
HTTP/ HTTPS Web-based management
System log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem AraçlarıIndicators:Signal Strength/ Noise/ Transmit CCQ/ CPU/ Memory
Monitors: Throughput/ Stations/ Interfaces/ ARP/ Routes/ WAN/ DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna Alignment
Sistem Düzeyindeki OptimizasyonlarOptimized IGMP Snooping / Proxy for multicast applications
POE ADAPTÖR ÖZELLİKLERİ
Boyutlar (H X W X D)85.8×43.9×29.7 mm
Arayüzler1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)
ButonRemote Reset Button
Güç Durum LEDleriGreen
Giriş100-240VAC, 50/60Hz
Çıkış24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Verimlilik>84.29%
SertifikalarCE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
DİĞERLERİ
SertifikaCE, FCC, RoHS, IP65, IC
Paket İçeriğiOutdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation Guide
Sistem GereksinimleriMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
OrtamOperating Temperature: -40?~70? (-40?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
